ExtraVENT 100 - 96 x 65.5 cm rooflight for motorhomes and caravans, double-glazed dome, LED, pleated blind and fly screen, roof 25-60 mm
- Large ExtraVENT 100 rooflight for motorhomes and caravans, cut-out 956 x 650 mm. Light grey double-glazed dome, bar opening with aluminium handle. Interior frame with LED, blind and fly screen. Roof 25-60 mm.
The ExtraVENT 100 is the largest rooflight in the ExtraVENT range, for motorhomes, caravans and van conversions. The 96 x 65.5 cm dome lets plenty of daylight and fresh air inside. It opens with a bar and aluminium handle. The interior frame holds LED lighting plus a pleated blackout blind and fly screen, so one unit replaces a window, a lamp and a curtain.
Dome and opening
- transparent light grey dome with double glazing
- bar opening with aluminium handle
- white outer frame
- external dimensions closed 1045 x 731 x 117 mm
Installation
- roof cut-out 956 x 650 mm
- the cut-out is practically the same as on the Heki 2 (960 x 655 mm), so the ExtraVENT 100 can replace a Heki 2 in an existing opening
- for roofs from 25 to 60 mm thick
- sandwich installation - outer and inner frame screwed together through the roof
- net weight 11.5 kg - allow for it in the vehicle payload

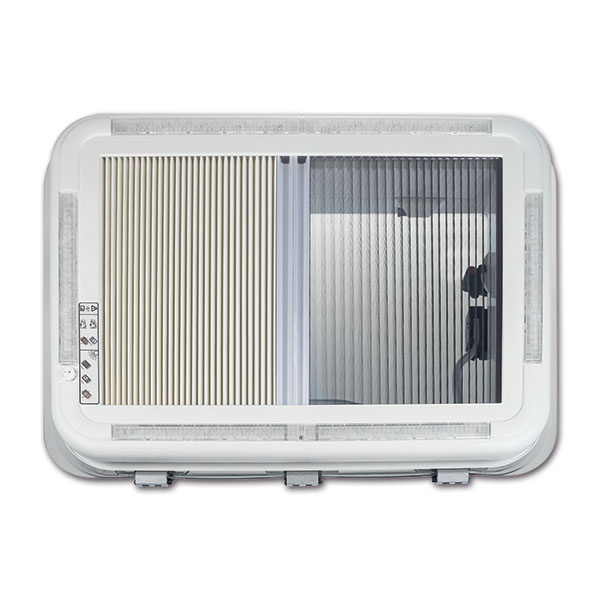

Interior frame
- built-in LED lighting
- pleated blackout blind
- pleated fly screen
- blind and fly screen operated from inside the vehicle
Related products
- ExtraVENT 70 Evo rooflight 70 x 50 cm with LED
- ExtraVENT 40 Evo rooflight 40 x 40 cm
- ExtraVENT 40 rooflight 40 x 40 cm
- PlusVent 50 x 70 cm rooflight with blind and fly screen, without LED
Technical data
| Parameter | Value |
|---|---|
| Model | ExtraVENT 100 |
| EAN | 8032793939092 |
| Rooflight size | 96 x 65.5 cm |
| Cut-out | 956 x 650 mm |
| Roof thickness | 25-60 mm |
| Replacement for | Heki 2 - cut-out 960 x 655 mm, practically the same |
| External dimensions (closed) | 1045 x 731 x 117 mm |
| Dome | transparent light grey, double glazed |
| Frame colour | white |
| Opening | bar with aluminium handle |
| Interior frame | LED lighting, pleated blind and fly screen |
| Installation | sandwich |
| Net weight | 11.5 kg |
Questions and answers
What cut-out is needed in the roof?
The cut-out is 956 x 650 mm.
What roof thickness does it fit?
Roofs from 25 to 60 mm thick.
Does the rooflight have lighting?
Yes. LED lighting is built into the interior frame.
Are the blind and fly screen included?
Yes. The pleated blackout blind and fly screen are part of the interior frame.
How is it installed?
Sandwich installation: the outer and inner frames are screwed together through the roof.
Will the ExtraVENT 100 replace a Heki 2?
Yes, in the existing opening. The ExtraVENT 100 cut-out is 956 x 650 mm and the Heki 2 cut-out is 960 x 655 mm, practically the same size.
How much does it weigh?
11.5 kg net.
Manufacturer
Carbon Zorro Sp. z o.o., ul. Humańska 8, 02-789 Warszawa, Poland. ExtraVENT brand.
