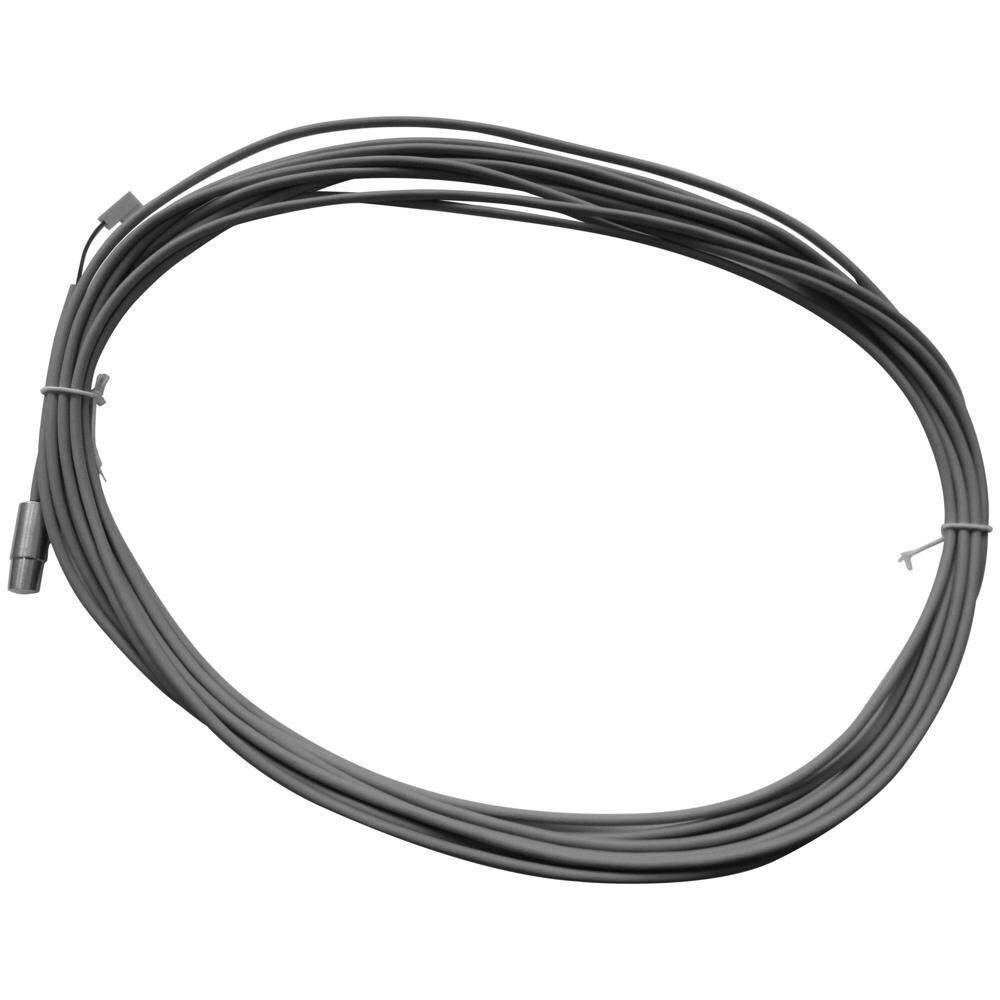

Toptron regulator heater 12 V 2 W - aluminium heating element for CPU Tank Safe and CPU Due Safe regulators, 7 m cable with CVILUX plug, for winter use
- Toptron aluminium heater, 12 V DC, 2 W, protects the gas regulator from icing in winter. Fits Cavagna regulators with a heater bore, e.g. CPU Tank Safe and CPU Due Safe. 7 m cable with CVILUX plug and Weicon VA100 adhesive included.
The Toptron regulator heater ensures a trouble-free gas supply when using a motorhome or caravan in winter. The aluminium heating element fits Cavagna pressure regulators with a suitable blind hole, e.g. CPU Tank Safe, and switchover systems, e.g. CPU Due Safe. It connects to the 12 V vehicle supply via a standard switch (not included).
Design and power
- aluminium heating element
- operating voltage 12 V DC
- power 2 W
- 7 m cable with factory-fitted CVILUX plug
- connection to the 12 V supply via a switch (not included)
Use
- prevents the regulator from icing in frost
- for Cavagna regulators with a blind hole for the heater, e.g. CPU Tank Safe
- for two-cylinder switchover systems, e.g. CPU Due Safe
- complete set for new installation or retrofitting; installation in a workshop
In the box
- aluminium heater with 7 m cable and CVILUX plug
- Weicon Contact VA100 adhesive
Related products
- Toptron CPU Tank Safe - crash protection unit for gas tanks
- Toptron CPU Due Safe - two-cylinder crash protection unit
- Toptron remote display for CPU Due Safe
- Toptron voltage limiter for the CPU control unit
Technical data
| Parameter | Value |
|---|---|
| Manufacturer | Toptron |
| Manufacturer part no. | EL826 |
| EAN | 4260702074235 |
| Type | gas regulator heater |
| Heating element | aluminium |
| Operating voltage | 12 V DC |
| Power | 2 W |
| Cable length | 7 m |
| Plug | CVILUX |
| Compatible with | Cavagna regulators with heater bore, e.g. CPU Tank Safe, CPU Due Safe |
| Switch | not included |
| In the box | heater with cable, Weicon Contact VA100 adhesive |
| Package size | 27 x 17.5 x 1.5 cm |
| Weight | 130 g |
| Country of origin | Germany |
Questions and answers
Why heat the regulator?
In frost the regulator can ice up and cut off the gas. The heater keeps it warm, so the heating keeps working in winter.
Which regulators does it fit?
Cavagna regulators with a suitable blind hole, e.g. CPU Tank Safe, and two-cylinder systems, e.g. CPU Due Safe.
How is it powered?
From the 12 V vehicle supply via a standard switch, which is not included.
How much current does it draw?
The heater is rated at 2 W, so it draws about 0.17 A at 12 V.
Can I fit it myself?
The manufacturer intends it for installation and retrofitting in a workshop.
Manufacturer
Toptron Gastechnik GmbH & Co. KG, Saydaer Straße 18, 09526 Heidersdorf, Germany.
