ExtraVENT 70 Evo - 70 x 50 cm rooflight for motorhomes and caravans, double-glazed dome, 4500 K LED, forced ventilation, pleated blind and fly screen, roof 25-60 mm
- ExtraVENT 70 Evo 70 x 50 cm rooflight for motorhomes and caravans, cut-out 702 x 502 mm, Midi Heki replacement. Double-glazed dome, 4500 K LED, forced ventilation, pleated blind and fly screen. Roof 25-60 mm.
The ExtraVENT 70 Evo is a white 70 x 50 cm rooflight for motorhomes, caravans and van conversions. The double-glazed dome opens with a bar and aluminium handle. The interior frame holds a pleated blackout blind, a fly screen and 4500 K LED lighting, and forced ventilation brings in fresh air even with the dome closed. The 702 x 502 mm cut-out matches the opening of a Midi Heki.

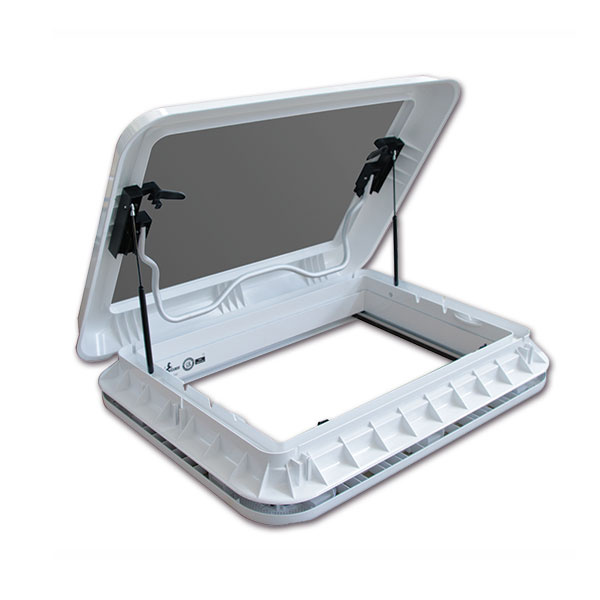

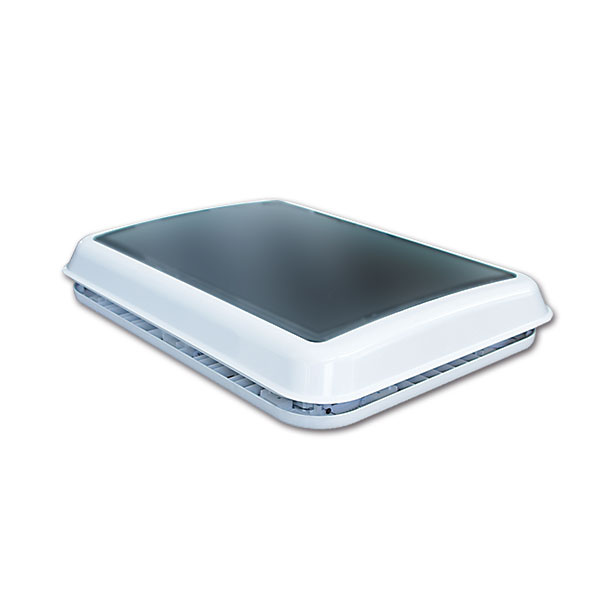

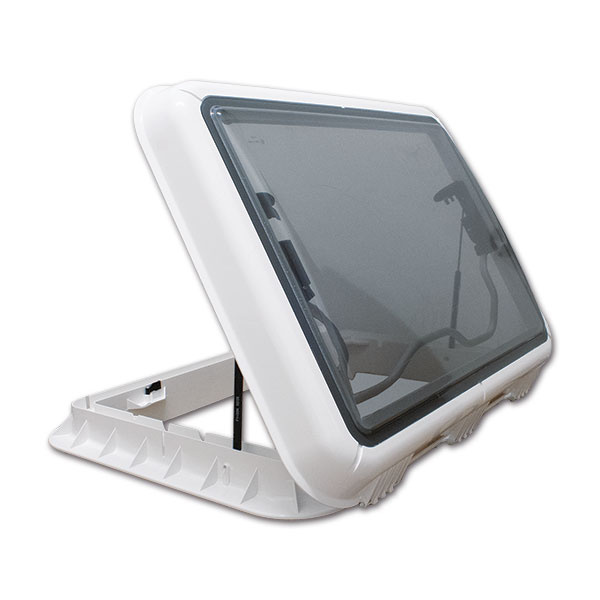

Dome and opening
- transparent double-glazed dome

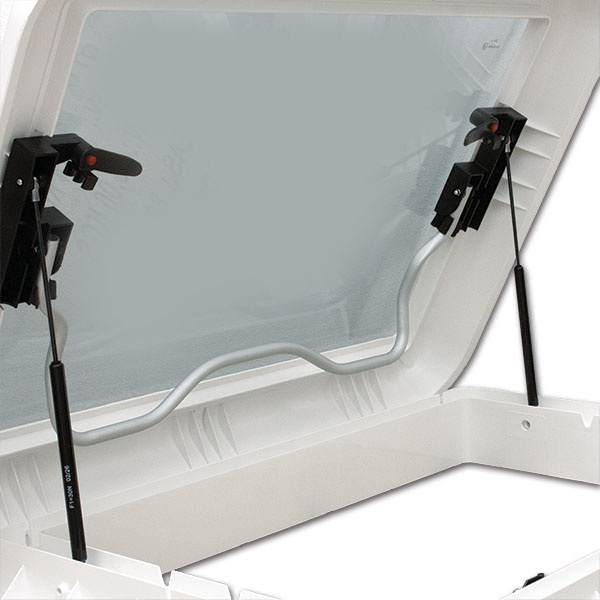

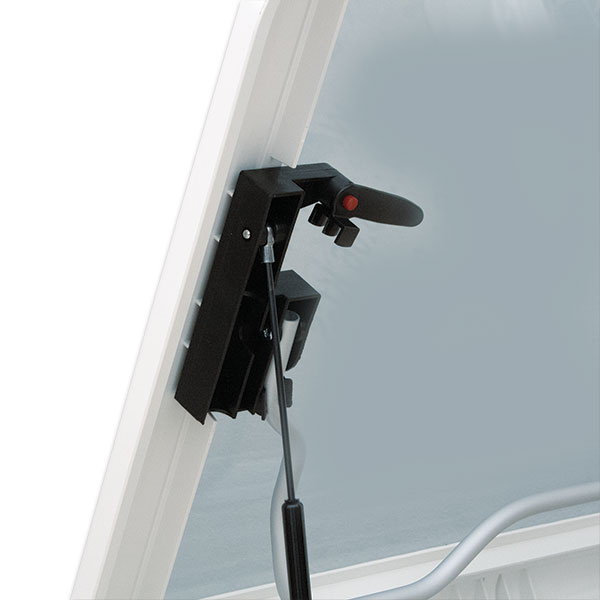

- bar opening with aluminium handle
- white outer frame
- external dimensions closed 818 x 617 x 90 mm
Installation
- roof cut-out 702 x 502 mm
- the cut-out is practically the same as on the Midi Heki (700 x 500 mm), so the ExtraVENT 70 Evo can replace a Midi Heki in an existing opening
- for roofs from 25 to 60 mm thick
- installation seals sold separately

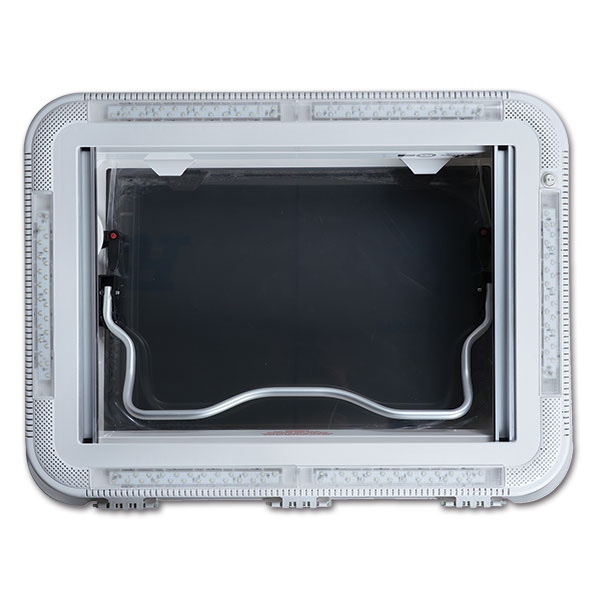

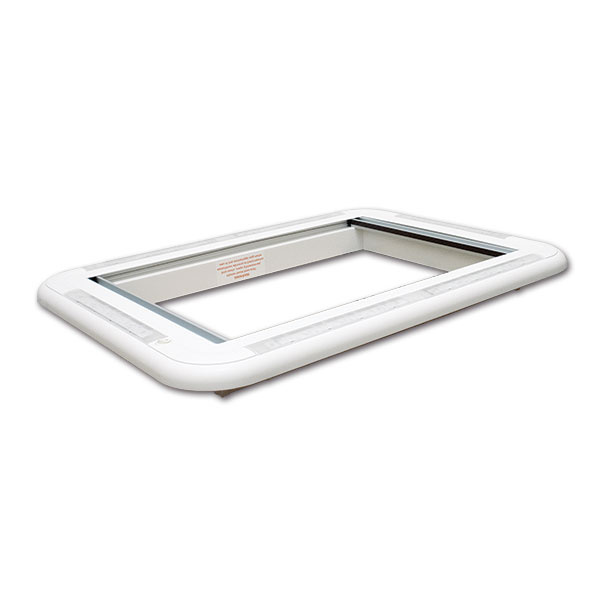

Interior frame
- pleated blackout blind
- pleated fly screen

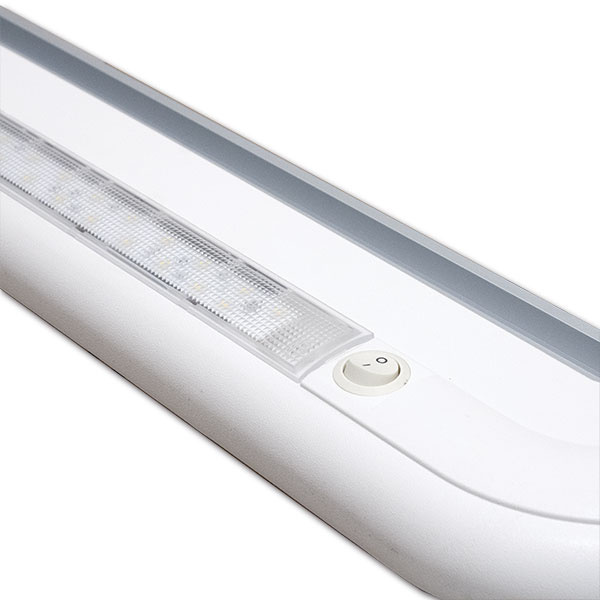

- 4500 K LED lighting in the interior frame
- forced ventilation
Related products
- ExtraVENT 100 rooflight 96 x 65.5 cm with LED
- ExtraVENT 40 Evo rooflight 40 x 40 cm
- ExtraVENT 40 rooflight 40 x 40 cm
- PlusVent 50 x 70 cm rooflight with blind and fly screen, without LED
Technical data
| Parameter | Value |
|---|---|
| Model | ExtraVENT 70 Evo |
| EAN | 8032793931980 |
| Rooflight size | 70 x 50 cm |
| Cut-out | 702 x 502 mm |
| Replacement for | Midi Heki - cut-out 700 x 500 mm, practically the same |
| Roof thickness | 25-60 mm |
| External dimensions (closed) | 818 x 617 x 90 mm |
| Dome | transparent, double glazed |
| Frame colour | white |
| Opening | bar with aluminium handle |
| Interior frame | pleated blind and fly screen |
| Lighting | LED 4500 K |
| Ventilation | forced |
| Seals | sold separately |
| Net weight | 8.3 kg |
Questions and answers
What cut-out is needed in the roof?
The cut-out is 702 x 502 mm.
What roof thickness does it fit?
Roofs from 25 to 60 mm thick.
Does the rooflight have lighting?
Yes. 4500 K LED lighting is built into the interior frame.
Are the blind and fly screen included?
Yes. The pleated blackout blind and fly screen are part of the interior frame.
Will the ExtraVENT 70 Evo replace a Midi Heki?
Yes, in the existing opening. The ExtraVENT 70 Evo cut-out is 702 x 502 mm and the Midi Heki cut-out is 700 x 500 mm, practically the same size.
Are seals included?
No. Installation seals are sold separately.
Manufacturer
Carbon Zorro Sp. z o.o., ul. Humańska 8, 02-789 Warszawa, Poland. ExtraVENT brand.
